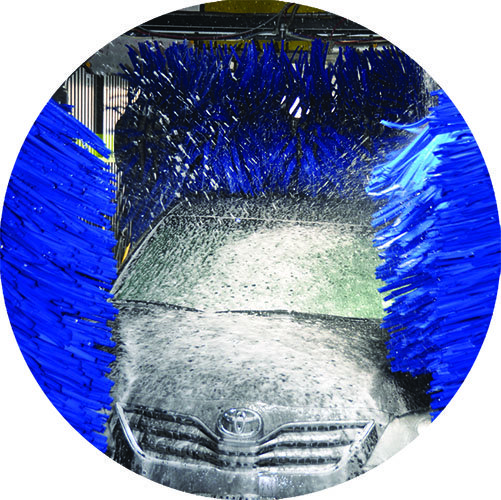

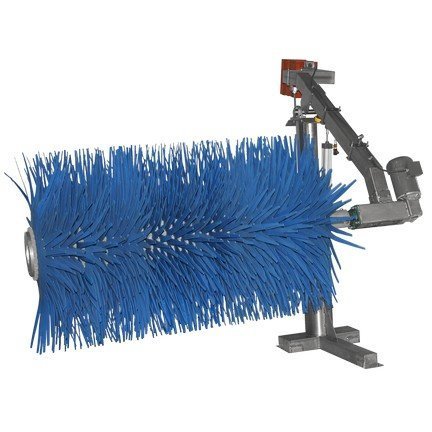

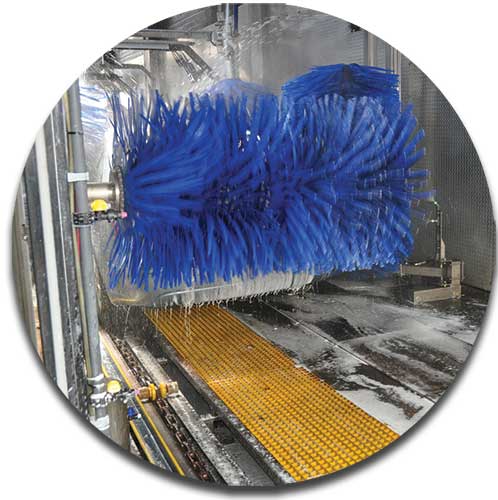

Ultimatech?s stainless steel Top-Brush is the utmost perfection of safety and cleaning power. Designing our system around the capabilities of electric drive enabled us to control the pressure of the brush against the vehicle?s curvature with the utmost ease. Because of its unique system integration, the Top-Brush can self-adjust to most conveyor speed requirements. As an option, we offer a Sonar detection package for pickup truck bed sensing ability. just another safety measure to ease of mind.
SPECIFICATIONS:
Parker ? high-quality pneumatic retract cylinder and Super-Duty stabilizer shock standard.
A structure constructed of 4?x 4? – #304 stainless steel
1 ?” stainless steel shaft
Bolt-sleeve composition for added stability
Reinforced frame with a lifetime guarantee
High-Quality TEFC motor (230v/460V)
Aluminum body speed reducer 40:1
Heavy-duty stainless steel bearings
Standard Foam-cloth: Blue, Red, Black

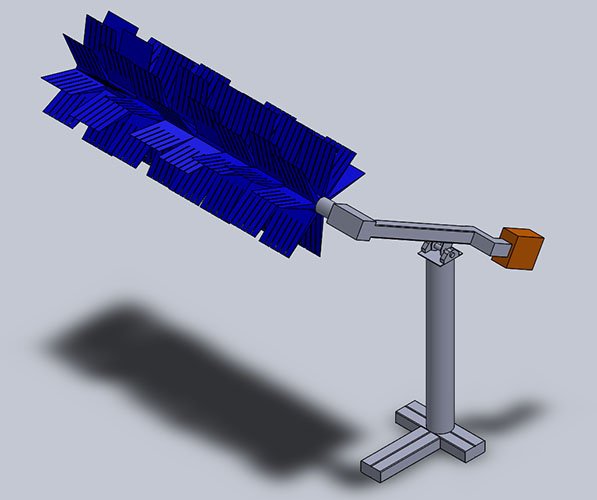

Available as straight or as a reverse option.
comes standard with retract control.
OPERATION:
Electric operation standard
Air – @ 70 PSI
Water ? 3/4? braided hose
Water nozzles ? 1
DIMENSIONS:
Equipment height: 11′
Tunnel lenght: 8?
Shipping weight – 900lbs
| Weight | 500 lbs |
|---|---|
| Options | Hydraulic, Electric |
